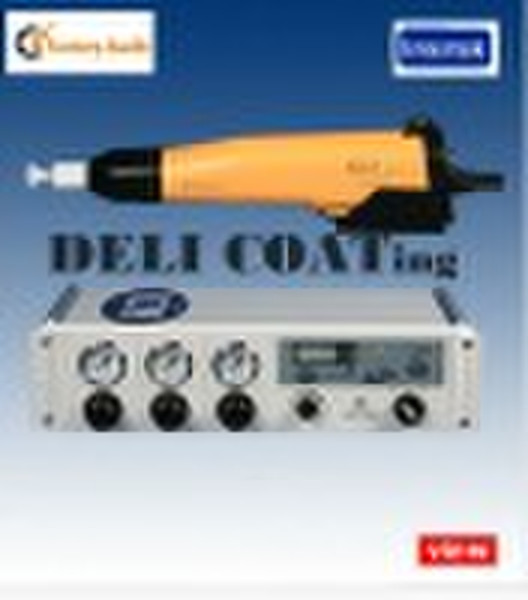

KCI-207 powder coating system

We are good at powder coating technology . We can design, manufacture, install a line as your want. We are also good at aftersales. Advantage of pulse coating:1 pulse coating saves 20% powder comparing to electrostatic coating,and the thickness is 40 70um(average thickness is 60um).2 charge the powder repeatedly ,so that can coat the dead angle.3 change the powder with high voltage that from low current,can coat again without changing thevoltage and current.4 because its coating thickness is thinner, fold will be less.5 it is auto, should use with theelevator together. The powder barrel is 40L.Type list 201 manual operating type 202 small objects’ coating type 204 test coating type 206 color transform type 207 auto-gun type 208 special powder type Technical Data of KCI-207 powder coating system Weight 420g Length 330mm Power source 220V/AC Frequency 50/60Hz power 30W Max output current 180μA Rated Input voltage 24V/DC Rated Output voltage 100KV polarity Negative High pressure mode Inside Max power injection 650g/min Max air consumption 13.2Nm³/h Pulse frequency 15 20 clock/sec Range of working temperature Below 10 50°C
